Audio Amplifier Using IC LM4780

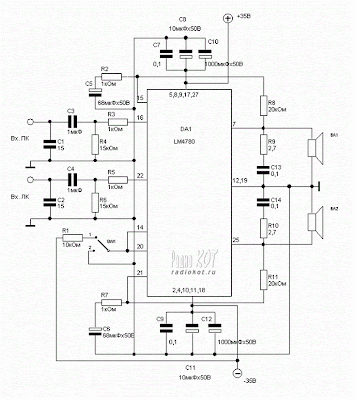

Audio Amplifier Using IC LM4780Audio Amplifier Using IC LM4780

Explore power amplifier integrated circuit from National Semiconductor LM4780. Whats so special? Well, first of all - a very low harmonic distortion. In general, manufacturers indicate the maximum power of his ingenious craft regularly with the harmonic content of 10%. At the same chip, CT in the specified maximum power is only 0.5%! Therefore, it is the most honest of all mikruhave found.

The chip implements two identical amplifier channels and features are given for the stereo amplifier. Circuit can also operate in mono - the inclusion of the bridge. In this case, the power output at CT = 0.5% of 120 watts. Other features remain virtually unchanged.

LM4780 IC Fiture
  • Features SPiKe Protection
  • Low external component count
  • Quiet fade-in/out mute mode
  • Wide supply range: 20V - 84V
  • Signal-to-Noise Ratio ≥ 97dB (ref. to PO = 1W)

Audio Amplifier Using IC LM4780Audio Amplifier Using IC LM4780
